PCI CONET Controller
A2818

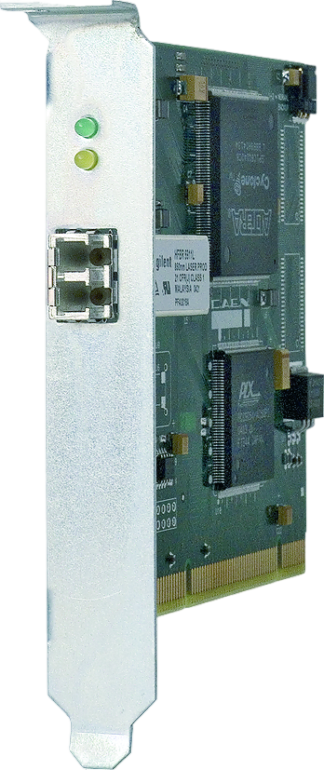

The Mod. A2818 is a 32-bit 33 MHz PCI card, which allows the control, through a standard PC, of up to 8 CAEN Optical Slave Cards (CAEN VME Bridge or Digitizers). The communication protocols used are the CONET1 or the new CONET2 (A dedicated firmware for the desired protocol must be installed on the board). Optical fiber cables are used as physical transmission line (AI2700 – Optical Fiber Series). The card drivers, together with C functions libraries and demo programs are provided for both Windows and Linux Users.
Features
-
32-bit PCI card
-
Up to 8 CAEN Optical slave cards (CAEN VME Bridges or Waveform Digitizers) controlled by a single A2818
-
CONET1 OR CONET2 CAEN Proprietary Optical link Compatible
-
Optical fiber cables transmission lines
-
Libraries, Demos (C and LabView) and Software tools for Windows and Linux
