A1676A

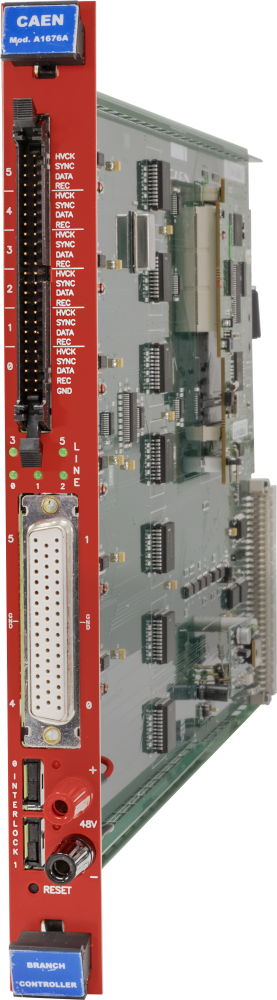

The CAEN Mod. A1676A EASY Branch Controller is implemented in a single width SYx527 board. Once plugged in, the Branch Controller must be linked to the EASY3000 and EASY4000 crates (which can work in the “hostile area”), via front panel connectors (Control and Power Supply). The A1676A is the interface between the mainframe and the remote boards in the EASY3000/4000 crate.

It configures the EASY3000/4000 channels as if they belong to the slot in which the branch controller is located: the channels of the EASY3000/4000 boards operate as channels of the A1676A. Up to six EASY3000/4000 crates can be controlled by one A1676A.

Consult our connectors reference page for technical information.

The User has to configure the A1676A to operate with his EASY crate layout by using the provided software tool.
The A1676A branch controller is a single width board and will be housed in one SYx527 system, while the remote sections will operate in the “hostile area”.
