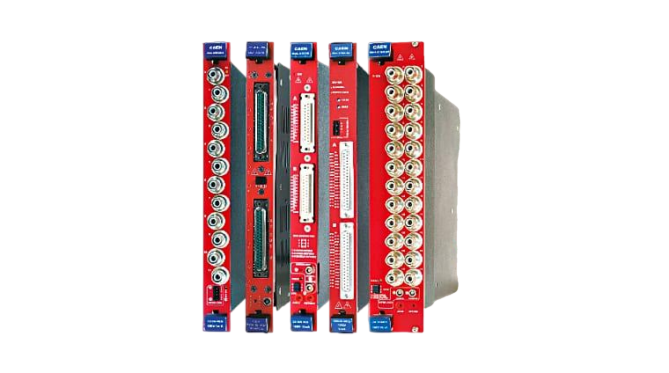

A1539 – A1540(H) – A1510 – A7040

Universal Multichannel System

Up to 100 V

This family of high voltage power supplies includes boards housing up to 48 independent output channels designed to provide voltage up to 100 V and current up to 20 mA.

All the boards are compatible with all CAEN Universal Multichannel Power Supply Systems and are available with two different grounding options: Common Ground (AGxxxx) or Common Floating Return (Axxxx) excluding the A1510 board which is Fully Floating. Common Floating Return allows on-detector grounding reducing the noise level; the floating return is insulated from the crate earth up to ±50 V (with a 65 V hardware limit).

The HV Ramp up/down rates may be selected independently for each channel in the 1 ÷ 50 V/s range (1 V/s step).

All the boards are provided with both current and voltage protections. If overcurrent occurs, the corresponding channel can be programmed either to turn of after a programmable trip time or to keep on providing the maximum allowed current. This feature allows the module to perform as a current generator.

The channels can be enabled or disabled through the Interlock logic. The voltage ramp rates may be set independently for each channel. The costumer can choose between different channel grounding.

The family is composed by three groups of boards detailed here below.

Features

  • From 12 to 48 independently controllable High Voltage channels
  • 0 ÷ 100 V output voltage
  • Maximum Current: 1mA, 10 mA or 1 mA/100 μA (dual range board)
  • Either DB37, DB25 or SHV connectors
  • Available with either positive, negative or mixed polarity
  • Up to 20 nA / 100 pA current set / monitor resolution
  • Up to 2 / 0.2 mV voltage set / monitor resolution
  • Extreme Low ripple, down to < 3 mVpp
  • 3 different channel grounding
    • Common Ground (AGxxxx)
    • Common Floating Return (Axxxx)
  • Independently programmable for each channel:
    • Output voltage
    • Current limit
    • Ramp up/down
    • TRIP parameter
  • Current generator operation in overcurrent condition

A1539 – A1540(H) – A1510 – A7040 Models

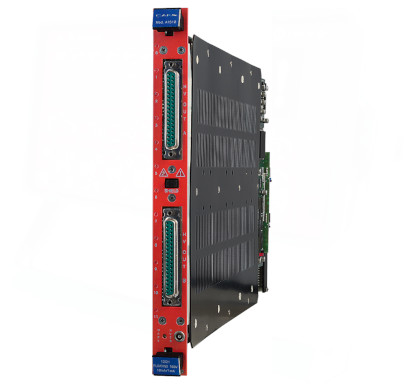

A1510
Obsolete

A1510

  • 12 independently controllable High Voltage channels

  • 100 V output; 10/1 mA dual current range

  • Individual floating channels

  • DB37 Multipin connectors

  • Low ripple

  • Under/over-voltage alert, overcurrent and max. voltage protection

  • Interlock logic for unit enable

  • Software Tool for easy channel management
A1539

A1539

  • 12 / 24 / 32 independently controllable High Voltage channels

  • Output Voltage: 100 V

  • Output current: 10 mA

  • Available with Negative / Positive / Mixed Polarity

  • SHV / DB25 connectors

  • Floating Type: Common Floating Return

  • Low ripple

  • Under/over-voltage alert, overcurrent and max. voltage protection

  • Interlock logic for unit enable

  • Software Tool for easy channel management
A1539B

A1539B

  • 32 independently controllable High Voltage channels

  • Output Voltage: 100 V

  • Output current: 20 mA

  • Available with Negative / Positive Polarity

  • DB25 connectors

  • Floating Type: Common Floating Return

  • Low ripple

  • Under/over-voltage alert, overcurrent and max. voltage protection

  • Interlock logic for unit enable

  • Software Tool for easy channel management
A1540

A1540

  • 12 / 24 / 32 independently controllable High Voltage channels

  • Output Voltage: 100 V

  • Output current: 1 mA

  • Available with Negative / Positive / Mixed Polarity

  • SHV / DB25 connectors

  • Floating Type: Common Floating Return

  • Low ripple

  • Under/over-voltage alert, overcurrent and max. voltage protection

  • Interlock logic for unit enable

  • Software Tool for easy channel management
A1540H

A1540H

  • 12 / 24 / 32 independently controllable High Voltage channels

  • Output Voltage: 100 V

  • Dual range current:

    • High Power: 1 mA (1 nA monitor resolution)

    • High resolution: 0.1 mA (0.1 nA monitor resolution)

  • Available with Negative / Positive / Mixed Polarity

  • SHV / DB25  connectors

  • Floating Type: Common Floating Return

  • Low ripple

  • Under/over-voltage alert, overcurrent and max. voltage protection

  • Interlock logic for unit enable

  • Software Tool for easy channel management
A7040

A7040

  • 48 independently controllable High Voltage channels

  • Output Voltage: 100 V

  • Output current: 1 mA

  • Available with Negative / Positive Polarity

  • DB37 connectors

  • Floating Type: Common Floating Return

  • Low ripple

  • Under/over-voltage alert, overcurrent and max. voltage protection

  • Interlock logic for unit enable

  • Software Tool for easy channel management

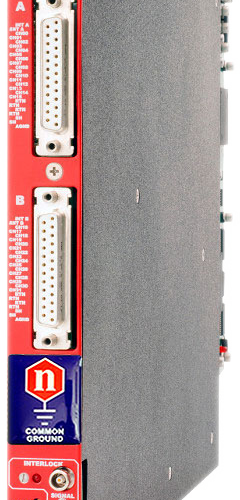

AG539

AG539

  • 12 / 24 / 32 independently controllable High Voltage channels

  • Output Voltage: 100 V

  • Output current: 10 mA

  • Available with Negative / Positive / Mixed Polarity

  • SHV / DB25 connectors

  • Floating Type: Common Ground

  • Low ripple

  • Under/over-voltage alert, overcurrent and max. voltage protection

  • Interlock logic for unit enable

  • Software Tool for easy channel management
AG540

AG540

  • 12 / 24 / 32 independently controllable High Voltage channels

  • Output Voltage: 100 V

  • Output current: 1 mA

  • Available with Negative / Positive / Mixed Polarity

  • SHV / DB25 connectors

  • Floating Type: Common Ground

  • Low ripple

  • Under/over-voltage alert, overcurrent and max. voltage protection

  • Interlock logic for unit enable

  • Software Tool for easy channel management

A1539 / AG539 / A1540(H) / AG540

These boards house up to 32 independent High Voltage channels available with either positive, negative or mixed polarity and  equipped with SHV or DB25 connectors. The maximum output current is 10 mA, (200 nA step) with 10 nA monitor resolution for the A1539, 1 mA, (20 nA step) with 1 nA monitor resolution for the A1540 and 1 mA/100 nA (20 nA steps) for the A1540H. Mixed version with 6/12 positive and 6/12 negative channels are also available. A version able to provide up to 100 V / 20 mA (A1539B) is available.

A7040

The CAEN A7040 is the new high density general purpose power supply offering you all the safety, performance and control of a completely independent channel technology at the cost effective price of a distributor. Well suited for large Silicon detectors arrays, this family house 48 independent High Voltage channels available with either positive or negative polarity, equipped with DB37 connector. The maximum output current is 1 mA, with 2 nA monitor resolution. The maximum output voltage can be set through a potentiometer to a value which is common to all channels and can be read out via software.

Universal Multichannel System - Mainframes

Modularity, Compatibility, Connectivity, Usability and Solidity are the keywords of the system design. The Mainframes have been specifically designed to power all detector technologies found in modern Physics Experiments, such as photomultipliers, wire chambers, streamers tubes, silicon detectors and others.

The systems are modular, flexible and match not only the requirements of major experiments with large number of channels but also the practical needs of test laboratories, where simple manual operations on a limited number of channels are often desired.

Software

A complete set of Software Tools is available (free download) to control CAEN Universal Multichannel Power Supply Systems, from low level libraries to graphical application software:

 CAEN, in collaboration with CERN, has developed an OPC server which allows control of its power supply systems by any OPC compliant client application.
HiVoCS HiVoCS is a Web Interface available on any SY4527-SY5527 CPU. This Interface can be accessed directly via browser without installing any additional software.
EPICS IOC Mainframes CPUs integrates an EPICS Input / Output Controller (IOC) that provides access to the Process Variables using the Channel Access Protocol.
CAEN HV Wrapper Library It is a set of ANSI C functions bundled in a library, providing the software developer an unified software interface for the control of all the CAEN Power Supply products
GECO2020 CAEN General Control SW for High Voltage Boards and Systems. It can manage and control CAEN HV power supplies in any form factor as if they were an unique device.
