8 independent channels in a Desktop package (110/220V AC Powered)
-
1 kV / 1 mA (0.6W) output range
-
Floating Channels
-
SHV coaxial output connectors
-
Floating return up to 5kV
-
Stacking channels capability: up to 5kV output
-
Low Ripple
-
Under/Over Voltage alert, overcurrent and max. voltage protection
-
Interlock logic for board enable and Individual channel kill
-
1 nA Current monitor resolution (with x10 Imon-Zoom: 100 pA)
-
2.8″ color touch screen display
-
Local and Remote control (USB2.0/Ethernet)
-
Software Tools for easy channel management

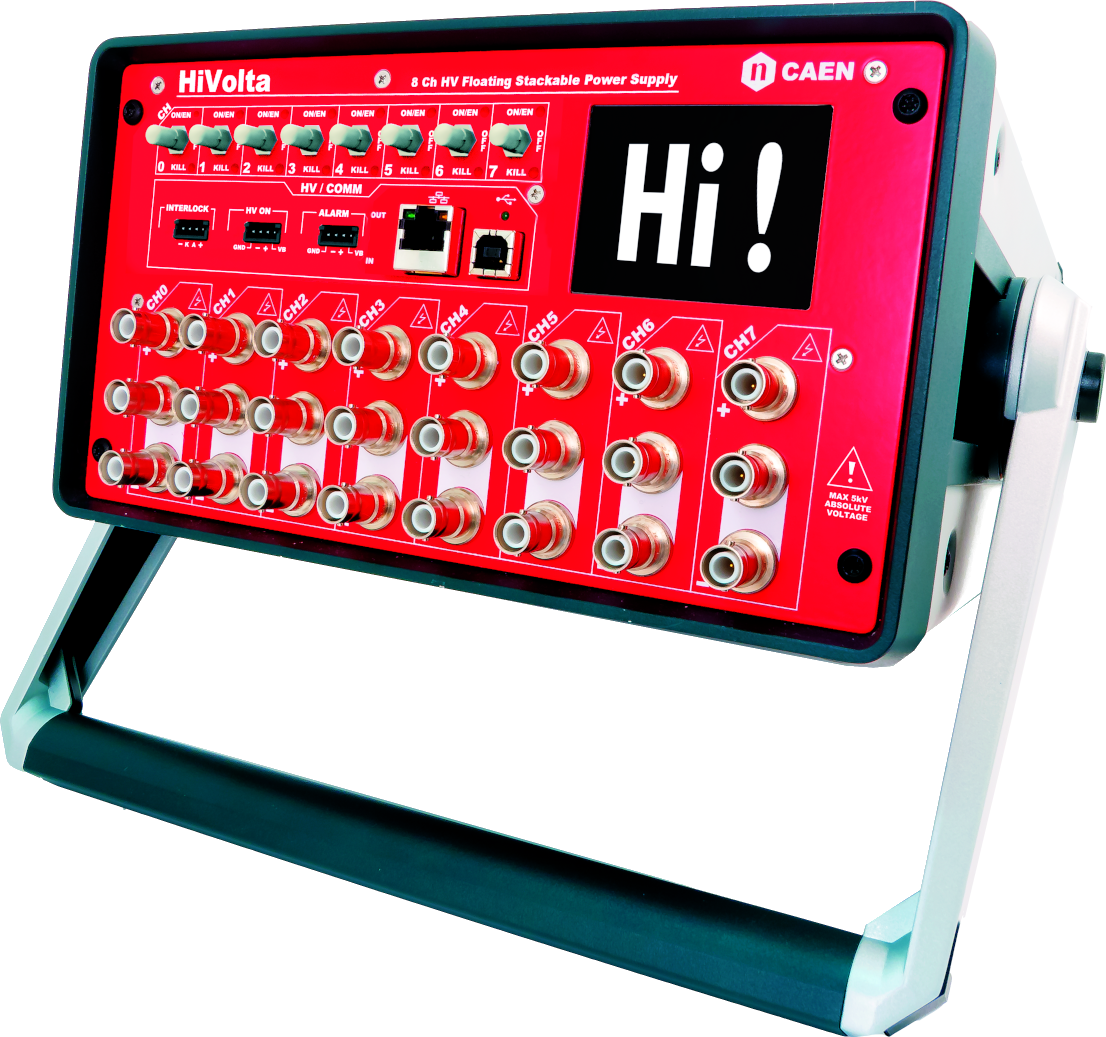

8 Channel 1kV/1mA Floating Stackable Power Supply with USB, Ethernet & Touchscreen
Stand Alone Power Supply

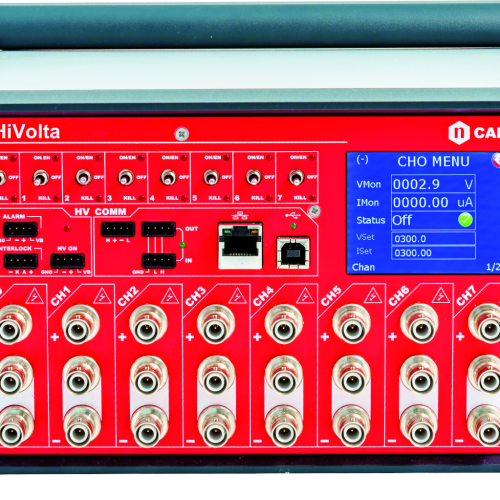

Up to 5 kV - DT1415ET (HiVolta)
Features
- 8 independent HV channels
- Channels are reversible, fully foating up to 5 kV each and stackable in one or more groups
- SHV coaxial output connectors (3 for each channel) for easy channel-to-channel interconnection using standard SHV-SHV cables
- Synchronous or ordered ON/OFF/KILL operation of selected channels
- Dual Range Current monitoring with up to 100 pA resolution
- Very Low Ripple: typical < 5 mVpp
- Ramp-Up/Down rates independently programmable in the range 1÷100 V/s in 1 V/s steps
- Under/overvoltage alert, overcurrent and max. voltage protection
- Interlock logic for unit enable and individual channel kill
- Local control with 2.8’’ color touch screen display
- Remote control with USB2.0 / Ethernet connections
8 Channel 1kV/1mA Floating Stackable Power Supply with USB, Ethernet & Touchscreen Models
