Up to 6 kV - R803x

The R803x is a new CAEN Power Supply Family providing 8 or 16 Independent High Voltage channels in a 2U, 19” Rack-mount unit.The channels share a Common Ground and four output ranges are available: 100 V/10 mA, 500 V/10 mA, 4 kV/3 mA (6W max), 6 kV/ 1 mA.The module is available with either positive or negative output polarity. Mixed version with 4/8 positive and 4/8 negative channels are also available.R803x units can be controlled either locally, thanks to a 2.8” touchscreen color LCD display with a complete user interface, or remotely, via USB or Ethernet, taking advantage of GECO2020 Control Software.100 V channels are delivered through BNC connectors, other versions feature SHV’s. The three high current models feature high Imon resolution of 50 nA, while the 6 kV/ 1mA has a resolution of 5 nA. Each unit is provided with Imon Zoom which increases Imon resolution by a factor 10.The HV output Ramp-up and Ramp-down rates may be selected independently for each channel.

Features

8 or 16 independently controllable HV channels in a 2U, 19” Rackmount unit
Very low ripple
Four versions from 100 V up to 6kV, and from 1 mA to 10 mA
BNC (for 100 V version) or SHV coaxial connectors
Local control with a 2.8” touch screen display
Remote control via Ethernet or USB 2.0
Common ground
Available with positive, negative or mixed polarity
Interlock logic for board enable and individual channel kill
LabVIEW Driver available
Software Tools for remote control
The 100 V version has:
- Temperature probe input for SiPM gain stabilization (single/multi slope corrections)
- Fast recovery output

8/16 Channel up to 6 kV Family with USB, Ethernet & Touchscreen Models

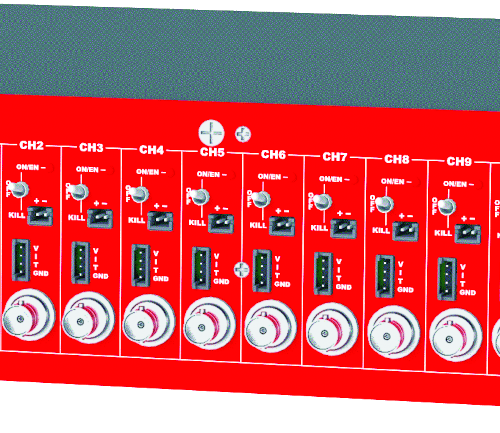

R8031

R8031

8 or 16 independent channels in a 19″ rack unit (110/220V AC Powered)
100 V / 10 mA output range
Channels with either positive or negative polarity
BNC coaxial output connectors
Temperature probe input
Low Ripple
Under/over-voltage alert, overcurrent and max. voltage protection
Interlock logic for board enable and Individual channel kill
50 nA current monitor resolution (with x10 Imon-Zoom: 5 nA)
2.8″ color touch screen display
Local and Remote control (USB2.0/Ethernet)
Software Tools for easy channel management

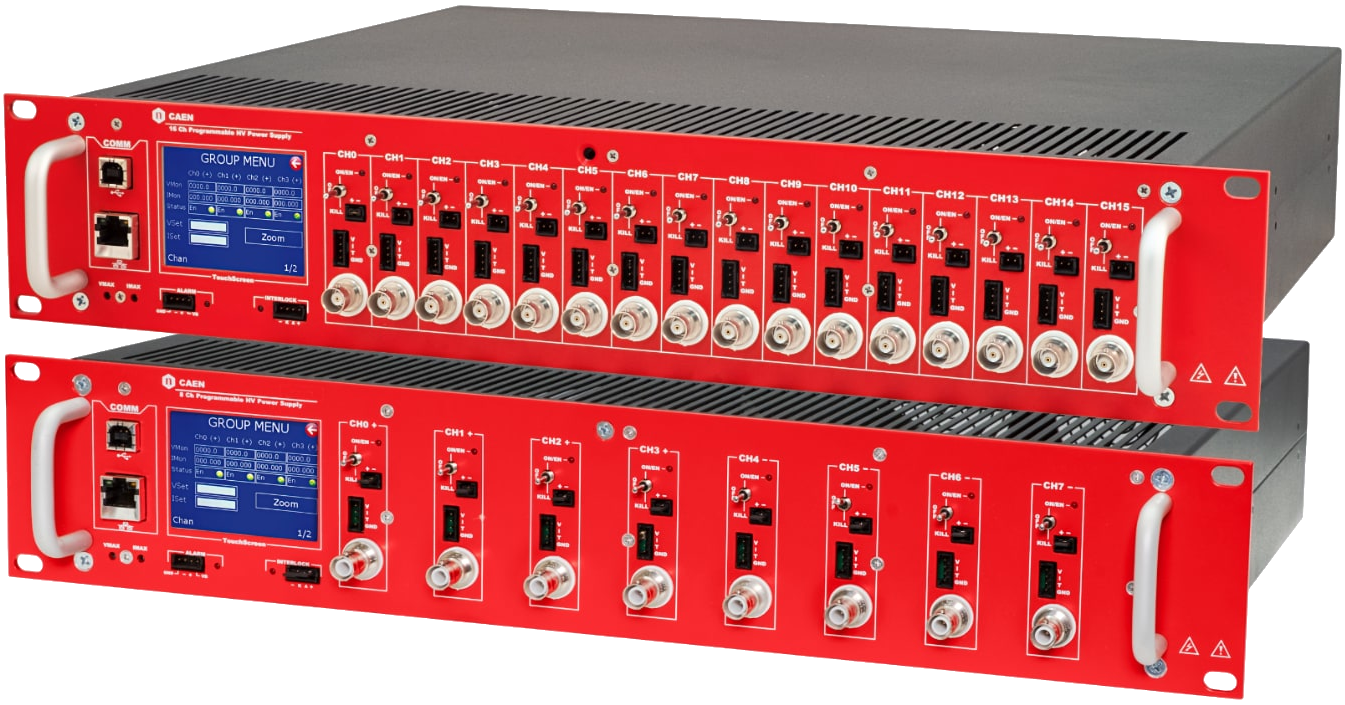

R8032

R8032

8 or 16 independent channels in a 19″ rack unit (110/220V AC Powered)
500 V / 10 mA output range
Channels with either positive or negative polarity
SHV coaxial output connectors
Low Ripple
Under/over-voltage alert, overcurrent and max. voltage protection
Interlock logic for board enable and Individual channel kill
50 nA Current monitor resolution (with x10 Imon-Zoom: 5 nA)
2.8″ color touch screen display
Local and Remote control (USB2.0/Ethernet)
Software Tools for easy channel management

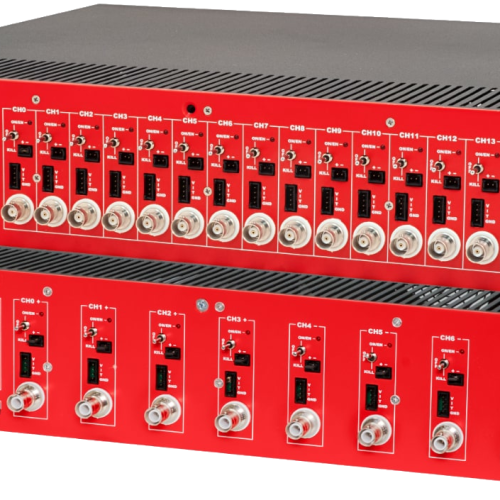

R8033

R8033

8 or 16 independent channels in a 19″ rack unit (110/220V AC Powered)
4 kV / 3 mA output range
Channels with either positive or negative polarity
SHV coaxial output connectors
Low Ripple
Under/over-voltage alert, overcurrent and max. voltage protection
Interlock logic for board enable and Individual channel kill
5 nA Current monitor resolution (with x10 Imon-Zoom: 500 pA)
2.8″ color touch screen display
Local and Remote control (USB2.0/Ethernet)
Software Tools for easy channel management

R8034

R8034

8 or 16 independent channels in a 19″ rack unit (110/220V AC Powered)
6 kV / 1 mA output ranges
Channels with either positive or negative polarity
SHV coaxial output connectors
Low Ripple
20 mV Vset resolution
5 nA Iset resolution
Under/over-voltage alert, overcurrent and max. voltage protection
Programmable ramp-up / ramp-down (1-500 V/s)
2.8″ color touch screen display
Local and Remote control (USB2.0/Ethernet)
Interlock logic for board enable and Individual channel kill
Software Tool for easy channel management

R8034H

R8034H

8 or 16 independent channels in a 19″ rack unit (110/220V AC Powered)
100 V / 10 mA output range
Channels with either positive or negative polarity
BNC coaxial output connectors
Temperature probe input
Low Ripple
Under/over-voltage alert, overcurrent and max. voltage protection
Interlock logic for board enable and Individual channel kill
50 nA current monitor resolution (with x10 Imon-Zoom: 5 nA)
2.8″ color touch screen display
Local and Remote control (USB2.0/Ethernet)
Software Tools for easy channel management

Software Tools available (free download) to control the Up to 6 kV Family – R803x:

CAEN LabVIEW	It is a set of VIs developed to configure and monitor all the parameters of remotely controlled CAEN Power Supply Modules.
CAEN HV Wrapper Library	It is a set of ANSI C functions bundled in a library, providing the software developer an unified software interface for the control of all the CAEN Power Supply products
GECO2020	CAEN General Control SW for High Voltage Boards and Systems. it can manage and control CAEN HV power supplies in any form factor as if they were an unique device.
