32+2/16+1 Ch. 12-bit 5 GS/s Digitizer

Digitizers 1.0

742 Digitizer Family

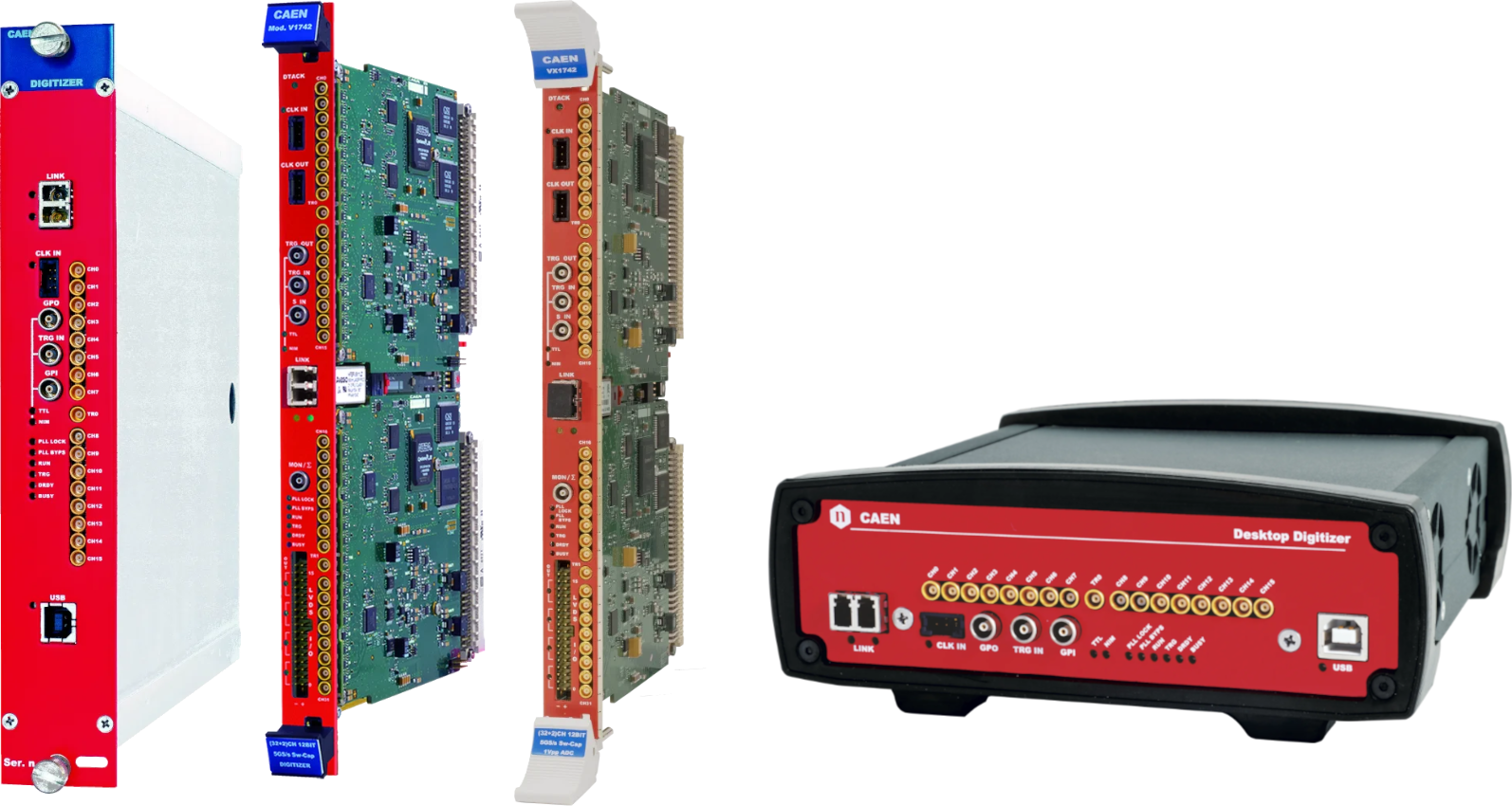

The 742 is the Switched Capacitor Digitizer family, based on the DRS4 chip by PSI, with the highest sampling frequency (5GS/s) and channel density. It can record very fast signals from scintillators coupled to PMTs, Silicon Photomultipliers, APD, Diamond detectors and others, and save them with high efficiency and precision for advanced timing analysis. The 742 family has an additional channel (two channels in case of VME boards) which can be used as time reference for time of fight measurements. The resolution of this kind of measurements can reach up to 50 ps.

The analog inputs are continuously sampled by the 1024 capacitive cells in the DRS4 chip at a frequency that is software selectable among 5 GS/s, 2.5 GS/s, 1 GS/s and 750 MS/s. Once the trigger condition is met, the capacitors are released, data is converted by a 12-bit ADC at a lower frequency and stored into a digital memory buffer. As the sampling and the analog-to-digital conversion are not simultaneous, a dead-time is introduced, during which the board cannot accept other triggers. Multiple boards can be synchronized to build up complex systems.

The acquisition is fully controlled by the WaveDump software, which manages the settings, plots and saves the waveforms. Libraries and demo software in C and LabView are available for integration and customization of specific acquisition systems.

742 family comes in three form factors: VME (32 input channels + 2 additional channels), NIM (16 input channels + 1 additional channel) and Desktop (16 input channels + 1 additional channel). The communication to and from the board is provided through the following interfaces: USB (Desktop and NIM form factors), VMEbus (VME form factor), and Optical Link (all form factors)

  • 12-bit @ 5 GS/s, 1024 samples per event

  • 5, 2.5, 1 and 0.75 GS/s software selectable sampling frequencies

  • Analog inputs on MCX coaxial connectors

  • VME64/VME64X (32+2 ch.), NIM (16+1 ch.) and Desktop (16+1 ch.) modules

  • 1 Vpp input dynamic range with programmable DC offset adjustment

  • VME, USB and Optical Link communication interfaces

  • Multi-board synchronization features

  • Daisy chain capability

  • Demo software tools, C and LabVIEW libraries, Readout Software

32+2/16+1 Ch. 12-bit 5 GS/s Digitizer Models

DT5742

DT5742

  • 12 bit @ 5 GS/s, Desktop module

  • Switched Capacitor technology based on the DRS4 chip (designed at Paul Scherrer Institute)

    • 1024 capacitor cells per channel (acquisition window of ~ 200 ns @ 5 GS/s)

  • 5 GS/s, 2.5 GS/s, 1 GS/s, 750 MS/s software selectable sampling frequencies

  • 16 analog input channels on MCX coaxial connectors

  • 1 additional analog input (TR0):

    • fast (low latency) trigger

    • digitizable for high resolution timing (up to 50 ps)

  • 1 Vpp input dynamic range (2 Vpp on request) with programmable DC offset adjustment

  • Dead-time due to conversion: 110 µs (analog inputs only), 181 µs (TR0 input)

  • Trigger modes:

    • External on TRG-IN connector; common to all groups

    • Fast (Low Latency) on TR0 connector; common to all groups

    • Self-trigger, combinations of channels over-threshold in logic OR; common to all groups

  • Memory buffer options: 128 events/ch; 1024 events/ch

  • USB and Optical Link communication interfaces

  • Demo software tools, C and LabVIEW libraries
N6742

N6742

  • 12 bit @ 5 GS/s, 1-unit wide NIM module

  • Switched Capacitor technology based on the DRS4 chip (designed at Paul Scherrer Institute)

    • 1024 capacitor cells per channel (acquisition window of ~ 200 ns @ 5 GS/s)

  • 5 GS/s, 2.5 GS/s, 1 GS/s, 750 MS/s software selectable sampling frequencies

  • 16 analog input channels on MCX coaxial connectors

  • 1 additional analog input (TR0):

    • fast (low latency) trigger

    • digitizable for high resolution timing (up to 50 ps)

  • 1 Vpp input dynamic range (2 Vpp on request) with programmable DC offset adjustment

  • Dead-time due to conversion: 110 µs (analog inputs only), 181 µs (TR0 input)

  • Trigger modes:

    • External on TRG-IN connector; common to all groups

    • Fast (Low Latency) on TR0 connector; common to all groups

    • Self-trigger, combinations of channels over-threshold in logic OR; common to all groups

  • Memory buffer options: 128 events/ch; 1024 events/ch

  • USB and Optical Link communication interfaces

  • Demo software tools, C and LabVIEW libraries
V1742

V1742

  • 12 bit @ 5 GS/s, 1-unit wide 6U VME64 module

  • Switched Capacitor technology based on the DRS4 chip (designed at Paul Scherrer Institute)

    • 1024 capacitor cells per channel (acquisition window of ~ 200 ns @ 5 GS/s)

  • 5 GS/s , 2.5 GS/s, 1 GS/s, 750 MS/s software selectable sampling frequencies

  • 32 analog input channels on MCX coaxial connectors

  • 2 additional analog inputs (TR0 and TR1):

    • fast (low latency) trigger

    • digitizable for high resolution timing (up to 50 ps)

  • 1 Vpp input dynamic range (2 Vpp on request) with programmable DC offset adjustment

  • Dead-time due to conversion: 110 µs (analog inputs only), 181 µs (TR0, TR1 inputs)

  • Trigger modes:

    • External on TRG-IN connector; common to all groups

    • Fast (Low Latency) on TR0 and TR1 connectors; common to couples of groups

    • Self-trigger, combinations of channels over-threshold in logic OR; common to couples of groups

  • Memory buffer options: 128 events/ch; 1024 events/ch

  • VME64 (VME64X compliant) and Optical Link communication interfaces

  • Multi-board synchronization features

  • 16 programmable LVDS I/Os

  • Demo software tools, C and LabVIEW libraries
VX1742

VX1742

  • 12 bit @ 5 GS/s, 1-unit wide 6U VME64 module

  • Switched Capacitor technology based on the DRS4 chip (designed at Paul Scherrer Institute)

    • 1024 capacitor cells per channel (acquisition window of ~ 200 ns @ 5 GS/s)

  • 5 GS/s, 2.5 GS/s, 1 GS/s, 750 MS/s software selectable sampling frequencies

  • 32 analog input channels on MCX coaxial connectors

  • 2 additional analog inputs (TR0 and TR1):

    • fast (low latency) trigger

    • digitizable for high resolution timing (up to 50 ps)

  • 1 Vpp input dynamic range (2 Vpp on request) with programmable DC offset adjustment

  • Dead-time due to conversion: 110 µs (analog inputs only), 181 µs (TR0, TR1 inputs)

  • Trigger modes:

    • External on TRG-IN connector; common to all groups

    • Fast (Low Latency) on TR0 and TR1 connectors; common to couples of groups

    • Self-trigger, combinations of channels over-threshold in logic OR; common to couples of groups

  • Memory buffer options: 128 events/ch; 1024 events/ch

  • VME64 (VME64X compliant) and Optical Link communication interfaces

  • Multi-board synchronization features

  • 16 programmable LVDS I/Os

  • Demo software tools, C and LabVIEW libraries

WaveDump

Open Source Acquisition Software for Developers

WaveDump is a basic console application supporting digitizers running Waveform Recording firmware. WaveDump allows the user to program a single board (according to a text configuration file containing a list of parameters and instructions), to start/stop the acquisition. It is then possible to read the data, display the readout and trigger rate. Moreover, it is also possible to apply some post-processing (e.g. FFT and amplitude histogram), save data into a file and also plot the waveforms using Gnuplot third-party graphical utility.

WaveDump is a very helpful example of C code demonstrating the use of libraries and methods for an efficient readout and data analysis. Expert users can start with this demo to write their own acquisition software to exploit the full potentialities of the digitizers. Source files and the VS project are available for free download. Available Firmware:

Interfaces & I/O

USB An USB 2.0 link is provided in NIM and Desktop form factors for an easy data readout VME Digitizer can be controlled via USB using the CAEN V3718 VME-USB2.0 Bridge

Optical Link An Optical link is provided in any form factor for high performance data readout through CAEN proprietary daisy-chainable CONET communication protocol. it is possible to connect up to 8/32 ADC modules to a single Optical Link Controller (Mod. A4818/A3818)

Digital I/O Digital I/Os are provided in VME boards that can be used for individual trigger propagation to external trigger logic. This feature makes VME form factor ideal to scale up the acquisition channels where a global trigger generation is mandatory.
