NIM / Up to 15 kV Reversible Polarity - NDT14xx-N14xxET-N14xx-N1570

The NIM power supply family provides a series of Independent High Voltage channels in 1U (N14xx) or 2U (NDT14xx, N14xxET, N1570) NIM module. N14xxET/NDT14xx families provides 4 channels, N1570 2 channels, while N14xx are available in versions housing 4, 2 or 1 channels (N14xx, N14xxA, N14xxB). Each channel can provides up to 15 kV and 3 mA max output. The output polarity is independently selectable for each channel that features common floating return (common return insulated from the crate ground); HV outputs are delivered through SHV or LEMO-HV connectors.

The HV output ramp-up and ramp-down rates may be selected independently for each channel in the range 1 ÷ 50 V/s or 1 ÷ 500 V/s in 1 V/s steps. The modules feature high Iset/Imon resolution (up to 1 nA). Each unit is provided with Imon Zoom, this feature increase Imon resolution up to 50 pA. Power supply control can be performed either locally, assisted by a 2.8” color touch screen or OLED display or remotely, via Ethernet, USB, RS232, RS485, the latter allowing to build a daisy chain network of modules N14xx. For those module not featuring the Ethernet interface, it is also possible to setup a control via TCP/IP by the Smart Fan Unit of CAEN NIM8301. The NDT modules can work either as a standard NIM module or a desktop power supply thanks to the 110-220 AC plug. A complete set of software tools is available to control these units, from low level libraries to graphical application software. Safety features allows the module to perform as a current generator and includes:

Channels

can be enabled or disabled through the Global Interlock logic.

Overvoltage and Undervoltage warning

when the output voltage differs from the programmed value by more than 2% of set value (minimum 10 V).

Overcurrent detection

when a channel attempts to exceed the programmed current limit, it signalled to be in “overcurrent” and enter in a TRIP status. The output voltage is varied to keep the current below the programmed limit for a programmable TRIP time, then the channel is switched off. If TRIP is set to “constant current mode”, the channel behaves like a current generator.

VMAX

Programmable VMAX protection limit.

Safety Board Interlock

Common Interlock logic for channels enable/disable and individual inputs signal for channel Kill function.

 Available Options:

  • A1480 DC Input Power Equalizer.

  • x 10 Imon Zoom, increasing Imon resolution to 500 pA.

N14xx modules are provided with a USB VCP interface and can be programmed via PC by connecting the PC USB port with the N14xx USB B-type port; the featured controller (FT232BM chip) requires a driver available on this page or at www.ftdichip.com

Features

  • 4/2/1 independent channels in 1U NIM module
  • Channel polarity independently selectable
  • SHV or LEMO-HV coaxial output connectors
  • Common floating return
  • Very Low Ripple
  • Under/over-voltage alert, overcurrent and max. voltage protection
  • Daisy-chain capability
  • 2.8” colour touch screen or OLED display
  • Local and Remote control (USB 2.0/Ethernet)
  • Optional selectable power requirement
  • Interlock logic for board enable and Individual channel kill
  • LabVIEW Driver available
  • Software Tools for remote control
  • 2U/Desktop (with 110-220 Vac) version available

1/2/4 Channel up to 15 kV Reversible Polarity Families with USB / RS232 / Ethernet / Touchscreen Models

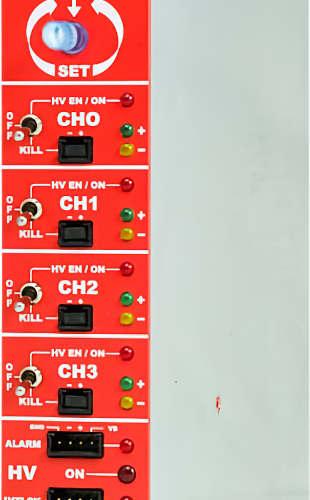

N1408

N1408

  • 4 independent channels in 1U NIM module

  • 800 V / 20 µA output range

  • Channels with individually selectable positive or negative polarity

  • BNC HV output connectors

  • Common floating return

  • Low Ripple

  • Under/over-voltage alert, overcurrent and max. voltage protection

  • Interlock logic for board enable and Individual channel kill

  • 500 pA Iset resolution

  • Graphic color display

  • Local and Remote control (USB2.0/RS485/RS232)

  • Daisy-chain capability

  • Optional DC Input Power Equalizer

  • Software Tools for easy channel management

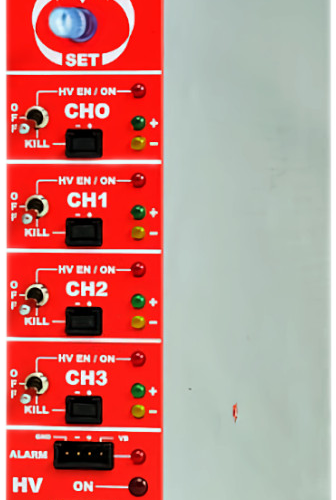

N1410

N1410

  • 4 independent channels in 1U NIM module

  • 1 kV / 200 µA output range

  • Channels with individually selectable positive or negative polarity

  • SHV output connectors

  • Common floating return

  • Low Ripple

  • Under/over-voltage alert, overcurrent and max. voltage protection

  • Interlock logic for board enable and Individual channel kill

  • 5 nA Current monitor resolution (with x10 Imon-Zoom: 500 pA)

  • Graphic color display

  • Local and Remote control (USB2.0/RS485/RS232)

  • Daisy-chain capability

  • Optional DC Input Power Equalizer

  • Software Tools for easy channel management

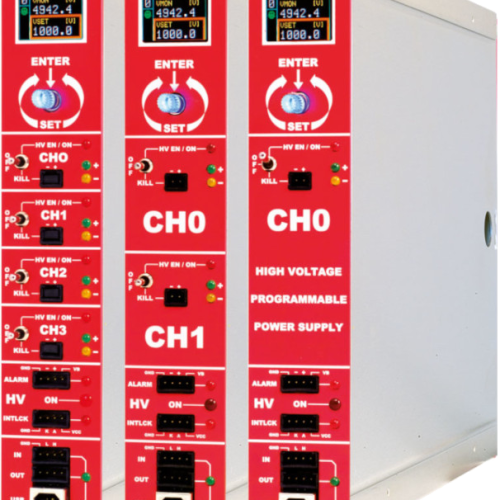

N1419

N1419

  • 4 independent channels in 1U NIM module (2 & 1 channel versions also available)

  • 500 V / 200 µA output range

  • Channels with individually selectable positive or negative polarity

  • SHV output connectors

  • Common floating return

  • Low Ripple

  • Under/over-voltage alert, overcurrent and max. voltage protection

  • Interlock logic for board enable and Individual channel kill

  • 5 nA Current monitor resolution (with x10 Imon-Zoom: 500 pA)

  • Graphic color display

  • Local and Remote control (USB2.0/RS485/RS232)

  • Daisy-chain capability

  • Optional DC Input Power Equalizer

  • Software Tools for easy channel management

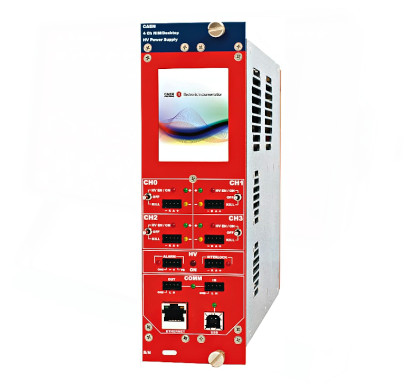

N1419ET

N1419ET

  • 4 independent channels in 2U NIM module

  • 500 V / 200 µA output range

  • Channels with individually selectable positive or negative polarity

  • SHV coaxial output connectors

  • Common floating return

  • Low Ripple

  • Under/over-voltage alert, overcurrent and max. voltage protection

  • Interlock logic for board enable and Individual channel kill

  • 5 nA Current monitor resolution (with x10 Imon-Zoom: 500 pA)

  • 2.8″ color touch screen display

  • Local and Remote control (USB2.0/Ethernet)

  • Daisy-chain capability

  • Software Tools for easy channel management

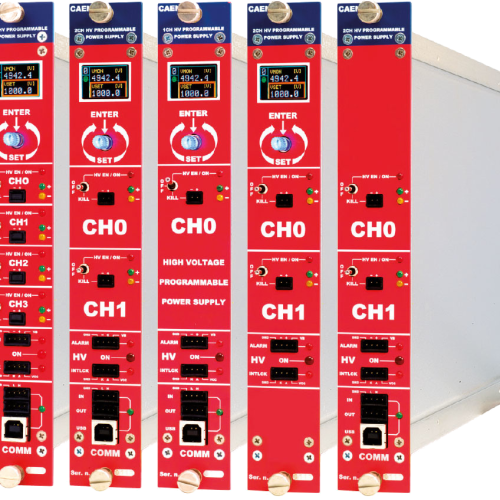

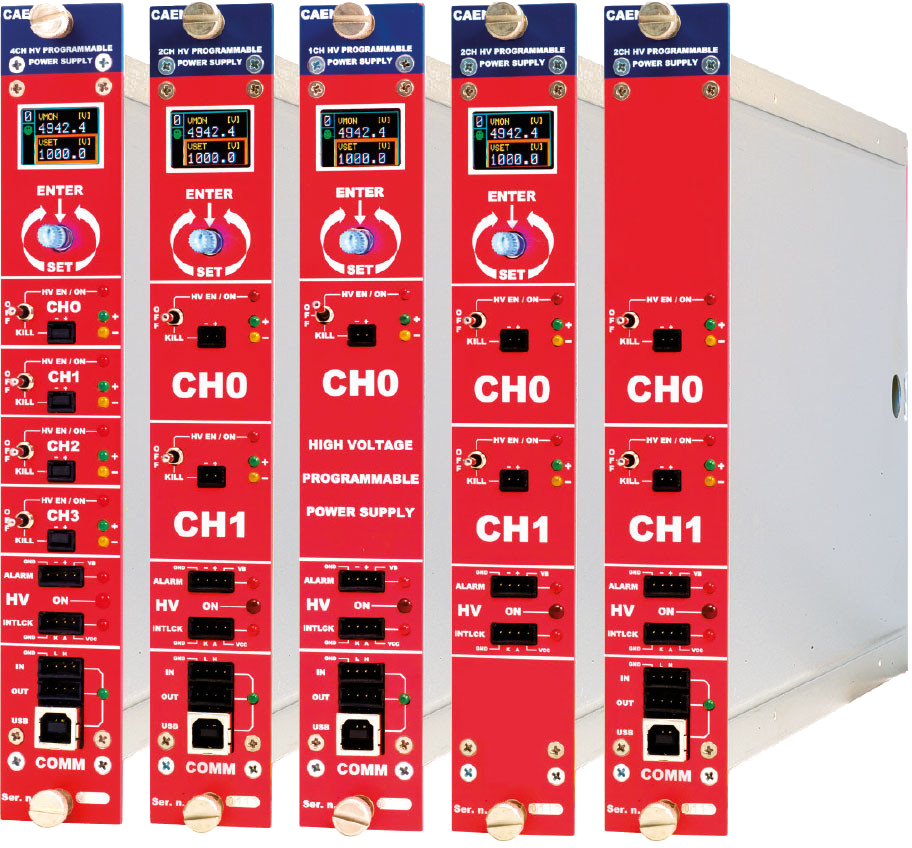

N1470

N1470

  • 4 independent channels in 1U NIM module (2 & 1 channel versions also available)

  • 8 kV / 3mA output range

  • Max output power:

    • 9 W (<3 kV output)

    • 8 W (>3 kV output)

  • Channels with individually selectable positive or negative polarity

  • SHV output connectors

  • Common floating return

  • Low Ripple

  • Under/over-voltage alert, overcurrent and max. voltage protection

  • Interlock logic for board enable and Individual channel kill

  • 5 nA Current monitor resolution (with x10 Imon-Zoom: 500 pA)

  • Graphic color display

  • Local and Remote control (USB2.0/RS485/RS232)

  • Daisy-chain capability

  • Optional DC Input Power Equalizer

  • Software Tools for easy channel management

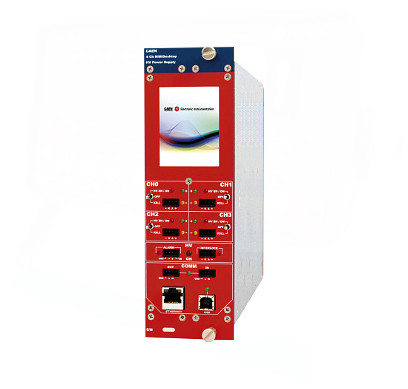

N1470ET

N1470ET

  • 4 independent channels in 2U NIM module

  • 8 kV / 3mA output range

  • Max output power:

    • 9 W (<3 kV output)

    • 8 W (>3 kV output)

  • Channels with individually selectable positive or negative polarity

  • SHV coaxial output connectors

  • Common floating return

  • Low Ripple

  • Under/over-voltage alert, overcurrent and max. voltage protection

  • Interlock logic for board enable and Individual channel kill

  • 50 nA Current monitor resolution (with x10 Imon-Zoom: 5 nA)

  • 2.8″ color touch screen display

  • Local and Remote control (USB2.0/Ethernet)

  • Daisy-chain capability

  • Software Tools for easy channel management

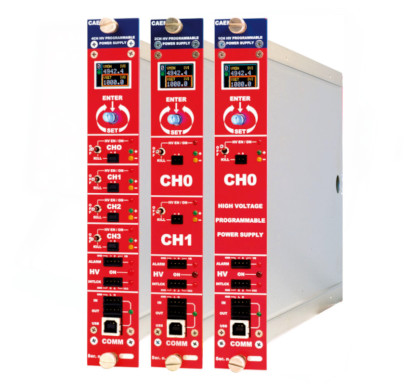

N1471

N1471

  • 4 independent channels in 1U NIM module (2 & 1 channel versions also available)

  • 5.5 kV / 300 µA output range

  • Channels with individually selectable positive or negative polarity

  • SHV output connectors

  • Common floating return

  • Low Ripple

  • Under/over-voltage alert, overcurrent and max. voltage protection

  • Interlock logic for board enable and Individual channel kill

  • 5 nA Current monitor resolution (with x10 Imon-Zoom: 500 pA)

  • Graphic color display

  • Local and Remote control (USB2.0/RS485/RS232)

  • Daisy-chain capability

  • Optional DC Input Power Equalizer

  • Software Tools for easy channel management

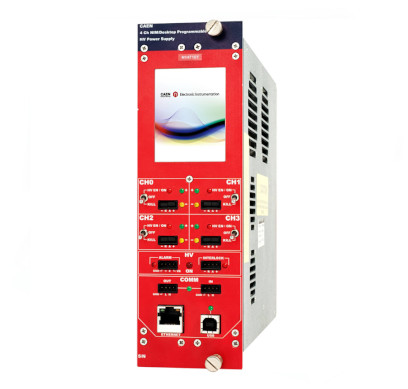

N1471ET

N1471ET

  • 4 independent channels in 2U NIM module
  • 5.5 kV / 300µA output range
  • Channels with individually selectable positive or negative polarity
  • SHV coaxial output connectors
  • Common floating return
  • Low Ripple
  • Under/over-voltage alert, overcurrent and max. voltage protection
  • Interlock logic for board enable and Individual channel kill
  • 5 nA Current monitor resolution resolution (with x10 Imon-Zoom: 500 pA)
  • 2.8″ color touch screen display
  • Local and Remote control (USB2.0/Ethernet)
  • Daisy-chain capabilty
  • Software Tools for easy channel management
N1471H

N1471H

  • 4 independent channels in 1U NIM module (2 & 1 channel versions also available)

  • 5.5 kV / 20 µA output range

  • Channels with individually selectable positive or negative polarity

  • SHV output connectors

  • Common floating return

  • Low Ripple

  • Under/over-voltage alert, overcurrent and max. voltage protection

  • Interlock logic for board enable and Individual channel kill

  • 1 nA Current monitor resolution (with x20 Imon-Zoom: 50 pA)

  • Graphic color display

  • Local and Remote control (USB2.0/RS485/RS232)

  • Daisy-chain capability

  • Optional DC Input Power Equalizer

  • Software Tools for easy channel management

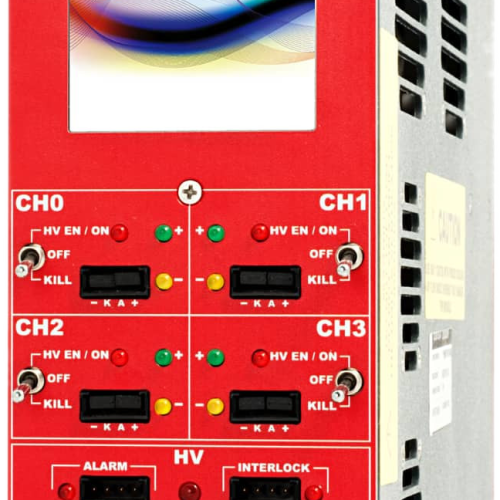

N1471HET

N1471HET

  • 4 independent channels in 2U NIM module

  • 5.5 kV / 20 µA output range

  • Channels with individually selectable positive or negative polarity

  • SHV coaxial output connectors

  • Common floating return

  • Low Ripple

  • Under/over-voltage alert, overcurrent and max. voltage protection

  • Interlock logic for board enable and Individual channel kill

  • 1 nA Current monitor resolution (with x20 Imon-Zoom: 50 pA)

  • 2.8″ color touch screen display

  • Local and Remote control (USB2.0/Ethernet)

  • Daisy-chain capability

  • Software Tools for easy channel management

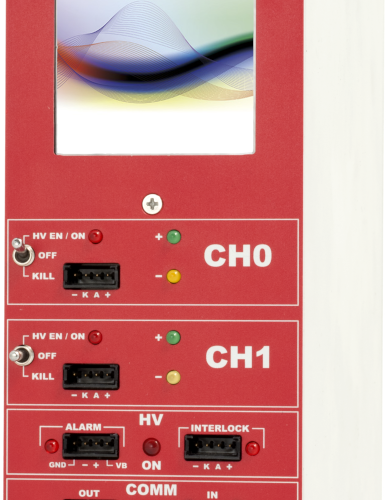

N1570

N1570

  • 2 independent channels in 2U NIM module

  • 15 kV / 1mA output range

  • Max channel power: 10W (< 10kV) or 7W (> 10kV)

  • Channels with individually selectable positive or negative polarity

  • LEMO HV coaxial output connectors

  • Common floating return

  • Low Ripple

  • Under/over-voltage alert, overcurrent and max. voltage protection

  • Interlock logic for board enable and Individual channel kill

  • 20 nA Current monitor resolution (with x10 Imon-Zoom: 2 nA)

  • 2.8″ color touch screen display

  • Local and Remote control (USB2.0/Ethernet)

  • Daisy-chain capability

  • Software Tools for easy channel management
NDT1419

NDT1419

  • 4 independent channels in 2U NIM module

  • 220 V / 110 V AC plug for desktop operation

  • 500 V / 200 µA output range

  • Channels with individually selectable positive or negative polarity

  • SHV coaxial output connectors

  • Common floating return

  • Low Ripple

  • Under/over-voltage alert, overcurrent and max. voltage protection

  • Interlock logic for board enable and Individual channel kill

  • 5 nA Current monitor resolution (with x10 Imon-Zoom: 500 pA)

  • 2.8″ color touch screen display

  • Local and Remote control (USB2.0/Ethernet)

  • Daisy-chain capability

  • Software Tools for easy channel management
NDT1470

NDT1470

  • 4 independent channels in 2U NIM module

  • 220 V/110 V AC plug for desktop operation

  • 8 kV / 3mA output range

  • Max output power:

    • 9 W (<3 kV output)

    • 8 W (>3 kV output)

  • Channels with individually selectable positive or negative polarity

  • SHV coaxial output connectors

  • Common floating return

  • Low Ripple

  • Under/over-voltage alert, overcurrent and max. voltage protection

  • Interlock logic for board enable and Individual channel kill

  • 50 nA Current monitor resolution (with x10 Imon-Zoom: 5 nA)

  • 2.8″ color touch screen display

  • Local and Remote control (USB2.0/Ethernet)

  • Daisy-chain capability

  • Software Tools for easy channel management

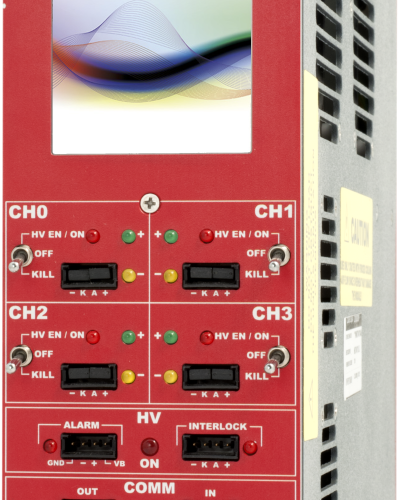

NDT1471

NDT1471

  • 4 independent channels in 2U NIM module

  • 220 V / 110 V AC plug for desktop operation

  • 5.5 kV / 300 µA output range

  • Channels with individually selectable positive or negative polarity

  • SHV coaxial output connectors

  • Common floating return

  • Low Ripple

  • Under/over-voltage alert, overcurrent and max. voltage protection

  • Interlock logic for board enable and Individual channel kill

  • 5 nA Current monitor resolution (with x10 Imon-Zoom: 500 pA)

  • 2.8″ color touch screen display

  • Local and Remote control (USB2.0/Ethernet)

  • Daisy-chain capability

  • Software Tools for easy channel management
NDT1471H

NDT1471H

  • 4 independent channels in 2U NIM module

  • 220 V / 110 V AC plug for desktop operation

  • 5.5 kV / 20 µA output range

  • Channels with individually selectable positive or negative polarity

  • SHV coaxial output connectors

  • Common floating return

  • Low Ripple

  • Under/over-voltage alert, overcurrent and max. voltage protection

  • Interlock logic for board enable and Individual channel kill

  • 1 nA Current monitor resolution (with x20 Imon-Zoom: 50 pA)

  • 2.8″ color touch screen display

  • Local and Remote control (USB2.0/Ethernet)

  • Daisy-chain capability

  • Software Tools for easy channel management

Software

Software Tools available (free download) to control the Up to 8 kV Reversible Polarity Family:

CAEN LabVIEW It is a set of VIs developed to configure and monitor all the parameters of remotely controlled CAEN Power Supply Modules.
EPICS IOC Mainframes CPUs integrates an EPICS Input / Output Controller (IOC) that provides access to the Process Variables using the Channel Access Protocol.
CAEN HV Wrapper Library It is a set of ANSI C functions bundled in a library, providing the software developer an unified software interface for the control of all the CAEN Power Supply products.
GECO2020 CAEN General Control SW for High Voltage Boards and Systems. it can manage and control CAEN HV power supplies in any form factor as if they were an unique. device.

Our NDT Power Supplies can work as a standalone unit like the classic desktop ones!

Copyright © 2024 CAEN S.p.A. All rights reserved. Website by Addiction
